Product Catalog
Complete range of certified flexible ducting products available for custom orders and OEM services.
Portable Flexible Ducting
Inner Diameter: 100mm - 1000mm | Temperature Range: -20°C to +80°C | Standard Length: 5m or 10m | Compression Ratio: 9:1 | Material: High-Density Polyester Weave Coated with PVC | Helix: Reinforced Steel Wire | Wall Construction: PVC-coated polyester fabric with external wear strip | End Fittings: Belted cuffed ends (no clamps required)
PP Suction Hose
Inner Diameter: 25mm - 302mm | Temperature Range: -20°C to +80°C | Standard Length: 5m (compressible to 1m) | Material: Polypropylene (PP) | Helix: Spring Steel Wire | Compression Ratio: 5:1 | Wall Construction: Corrugated PP with Steel Wire Reinforcement
Aluminum Semi-rigid Duct
Inner Diameter: 63mm - 305mm (available sizes: 63, 76, 102, 127, 152, 160, 180, 203, 254, 305mm) | Wall Thickness: 0.1mm | Temperature Range: -20°C to +150°C | Standard Length: 1-4m (extendable) | Expansion Ratio: 1:4 | Material: 100% Pure Aluminum | Construction: Single-layer Spiral Corrugation | Color: Metallic Silver | Bands Available: 4, 6, 8 bands
Rigid Ducting
Temperature Range: -10°C to +80°C|ID Range: 51mm - 203mm|Material: 100% Rigid Self-supporting PVC with Ribbon-lock Construction|Helix Type: Rigid PVC Interlock|Standard Length: 5m|Diameter Adjustment: ±25% of original ID
PTFE Ducting
Temperature Range: -70°C to +260°C|ID Range: 50mm - 1000mm|Material: PTFE Coated Glass Fiber Fabric|Helix Type: Zinc Plated Steel Slice|Standard Length: 10m

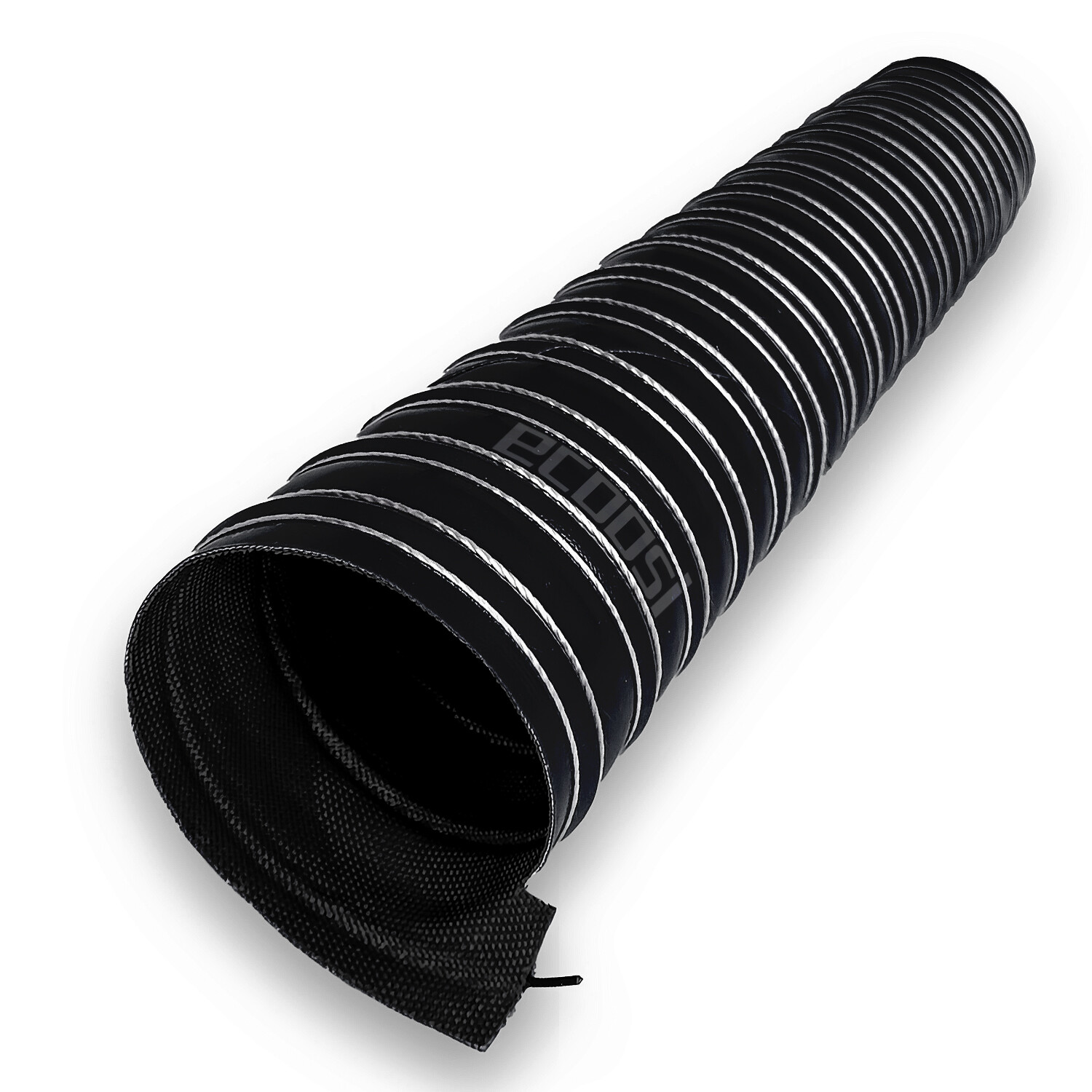

Neoprene Ducting
Temperature Range: -50°C to +150°C|ID Range: 25mm - 305mm (1" - 12")|Material: 2-ply Neoprene-coated Glass Fiber Fabric|Helix Type: Spring Steel Wire with Glass Fiber Cord|Standard Length: 4m|Finish: Black

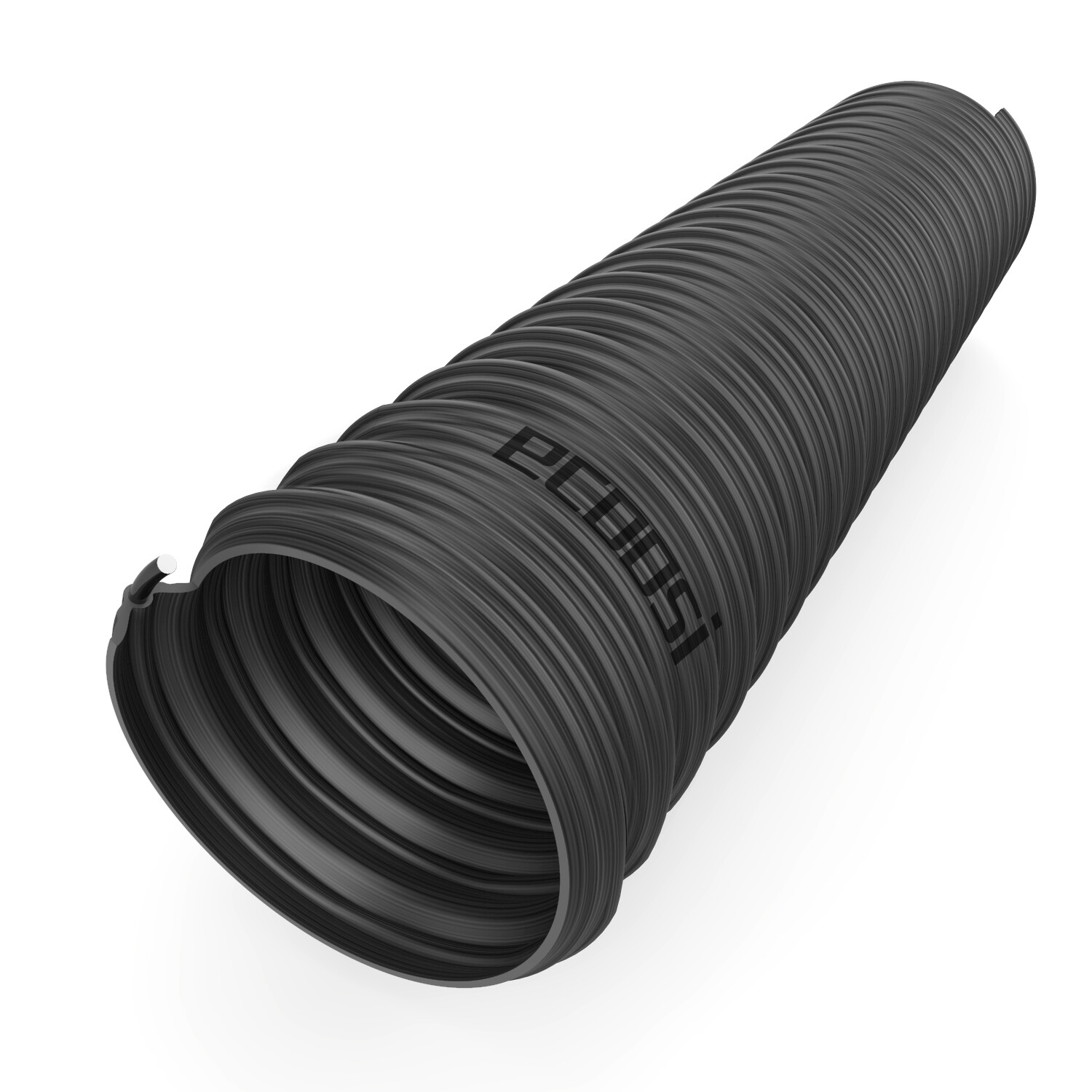

TPR Ducting
Temperature Range: -40°C to +150°C|ID Range: 25mm - 305mm|Material: Thermoplastic Rubber (TPR)|Helix Type: TPR Coated Steel Wire|Standard Length: 10m|Finish: Black

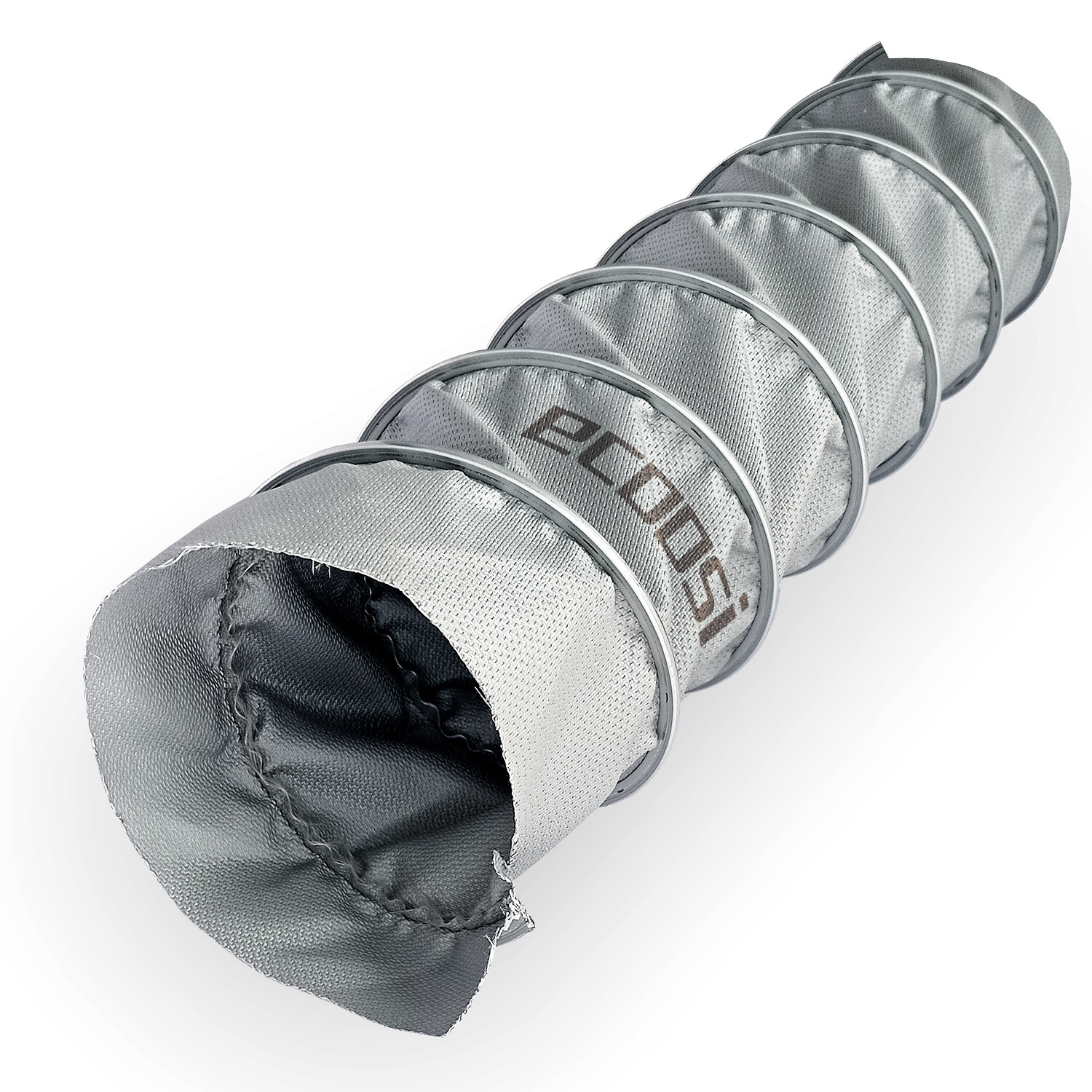

High Temperature Ducting
Temperature Range: -80°C to +400°C (short-time up to +450°C)|ID Range: 38mm - 1000mm|Material: Double-ply Silicone Coated Fiberglass Fabric|Helix Type: Coated Steel Wire with Metal Clip|Standard Length: 10m|Compression Rate: 10:1

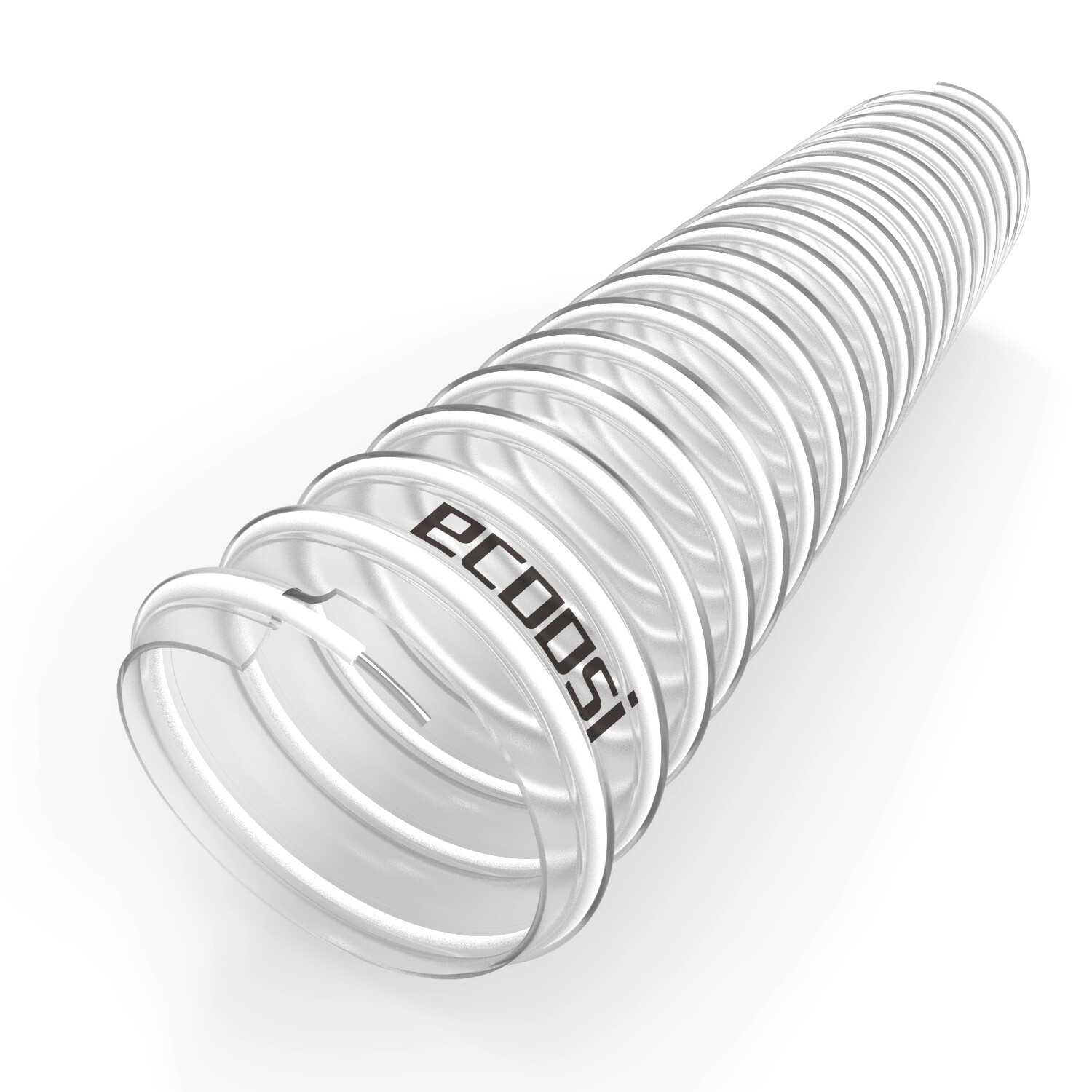

PVC Ducting
Temperature Range: -20°C to +70°C|ID Range: 25mm - 305mm|Material: Soft Polyvinyl Chloride (PVC)|Helix Type: PVC-coated Steel Wire|Standard Length: 10m
Silicone Ducting
Temp: -70°C to +310°C | ID: 19-305mm | Length: 4m | Material: Silicone-coated glass fabric double-layer | Helix: Spring steel wire with external filament fiberglass cord
Fabric Ducting
Temp: -20°C to +120°C | ID: 51-400mm | Length: 10m (compresses to 1m) | Material: PVC coated polyester fabric | Helix: Steel wire | Colors: Black White Grey Blue
PU Ducting
Temp: -40°C to +90°C (short time to 125°C) | ID: 25-305mm | Length: 10m | Material: 100% abrasion and flame resistant polyurethane | Helix: Copper coated spring steel wire
