Neoprene Ducting
High Temperature
Product Description
2-ply neoprene-coated glass fiber fabric ducting with spring steel wire and glass cord reinforcement. Designed for high temperature air handling and plastic processing applications with excellent crush and abrasion resistance.
Key Features
- Excellent heat resistance for high temperature applications
- Ideal for plastic processing and granulate dryers
- Non-kinking design maintains smooth airflow
- Narrow pitch allows tight bending radius
- Good crush and abrasion resistance
- Handles both positive and negative pressures
Technical Specifications
| Temperature Range | -50°C to +150°C |
| ID Range | 25mm - 305mm (1" - 12") |
| Material | 2-ply Neoprene-coated Glass Fiber Fabric |
| Helix Type | Spring Steel Wire with Glass Fiber Cord |
| Standard Length | 4m |
| Finish | Black |
Custom Product Showcase

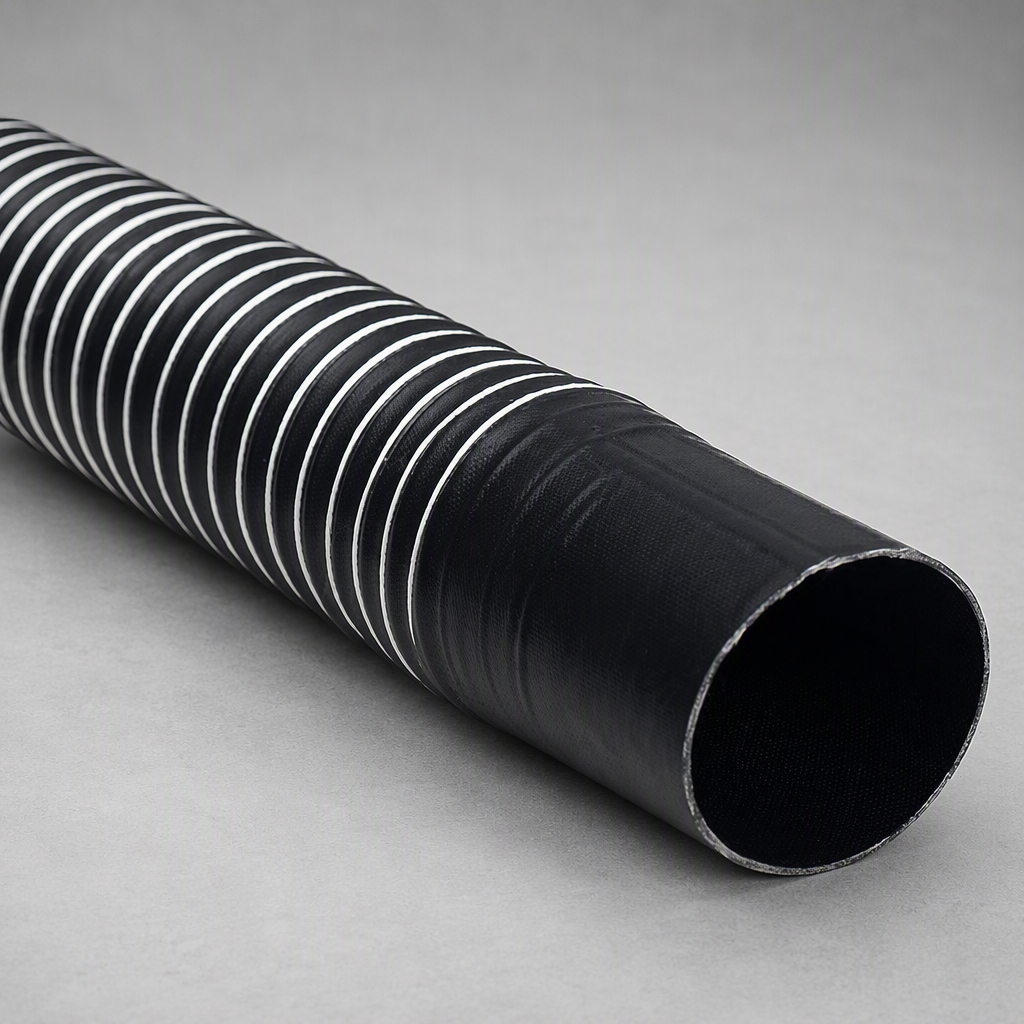

Neoprene Duct With Cuffs

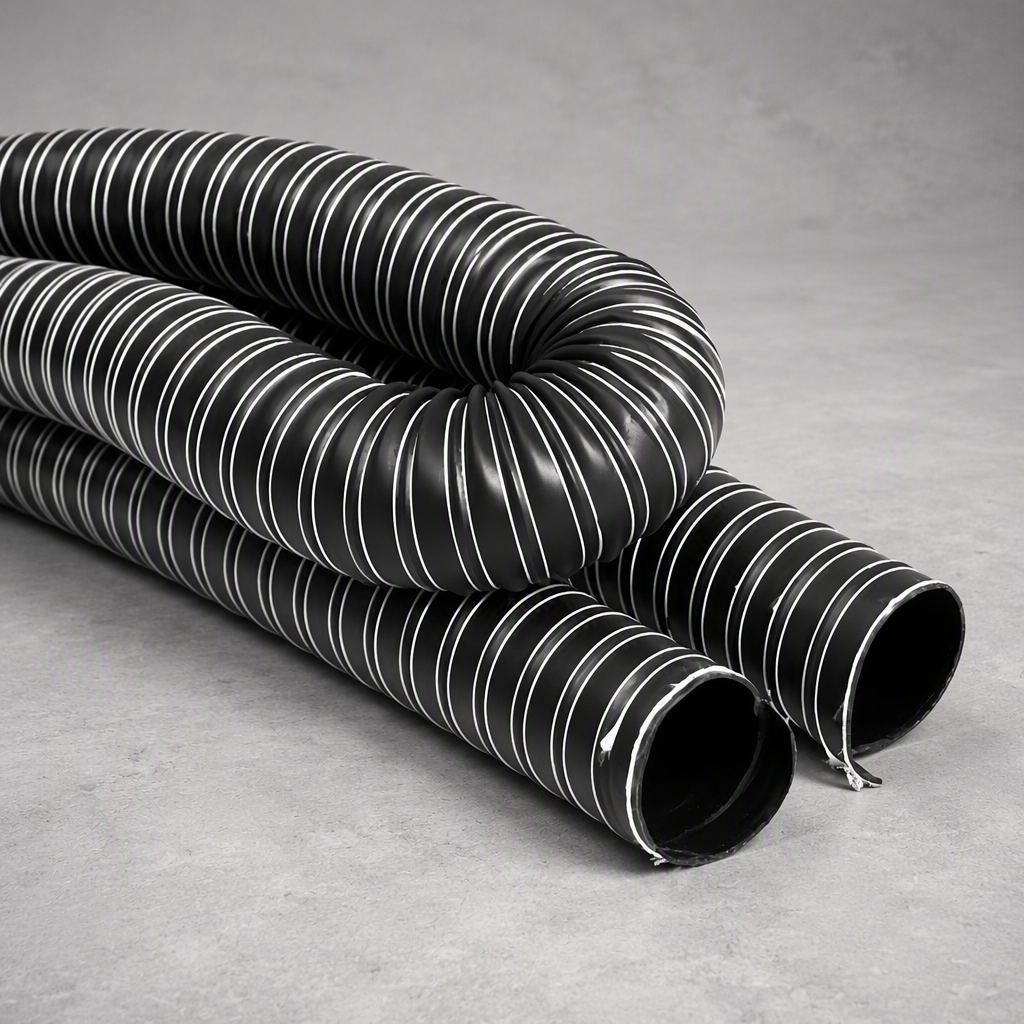

Single Layer Neoprene Ducting

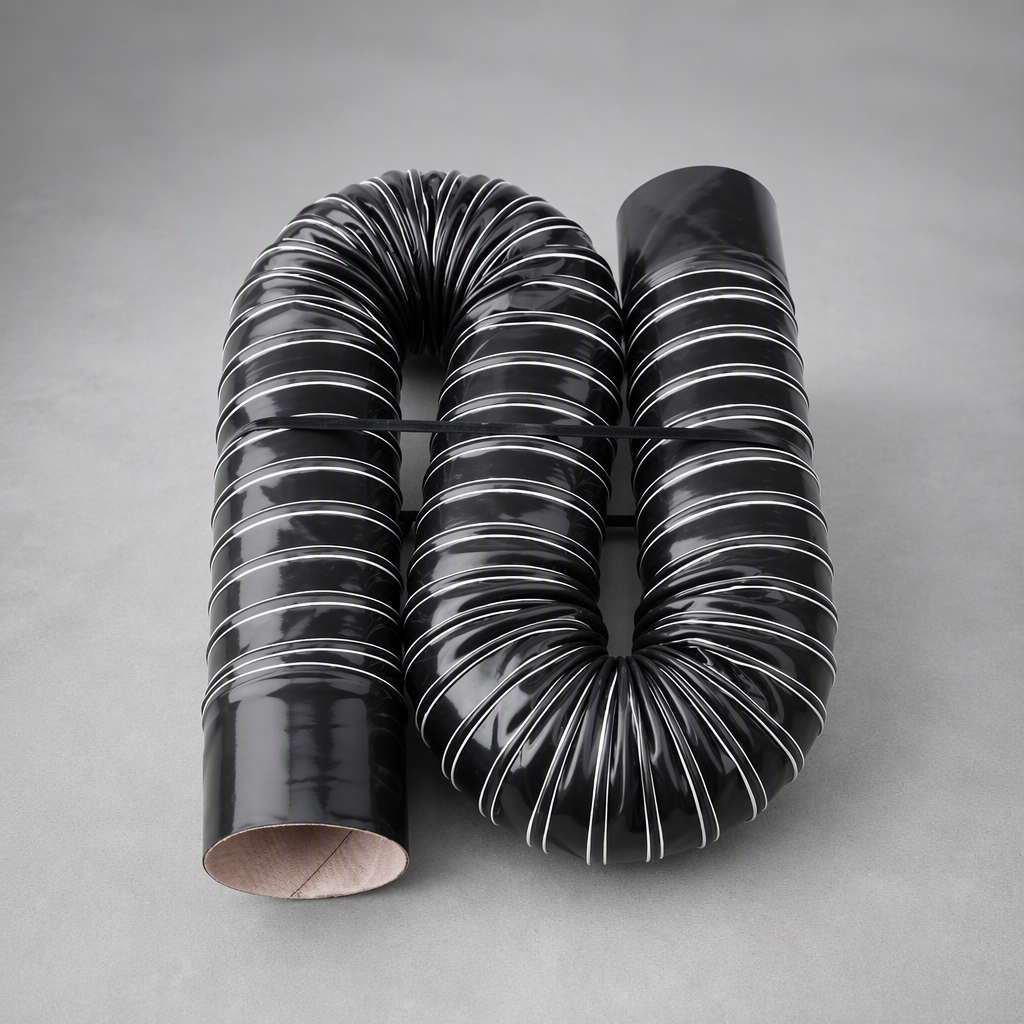

Flexible Neoprene Duct

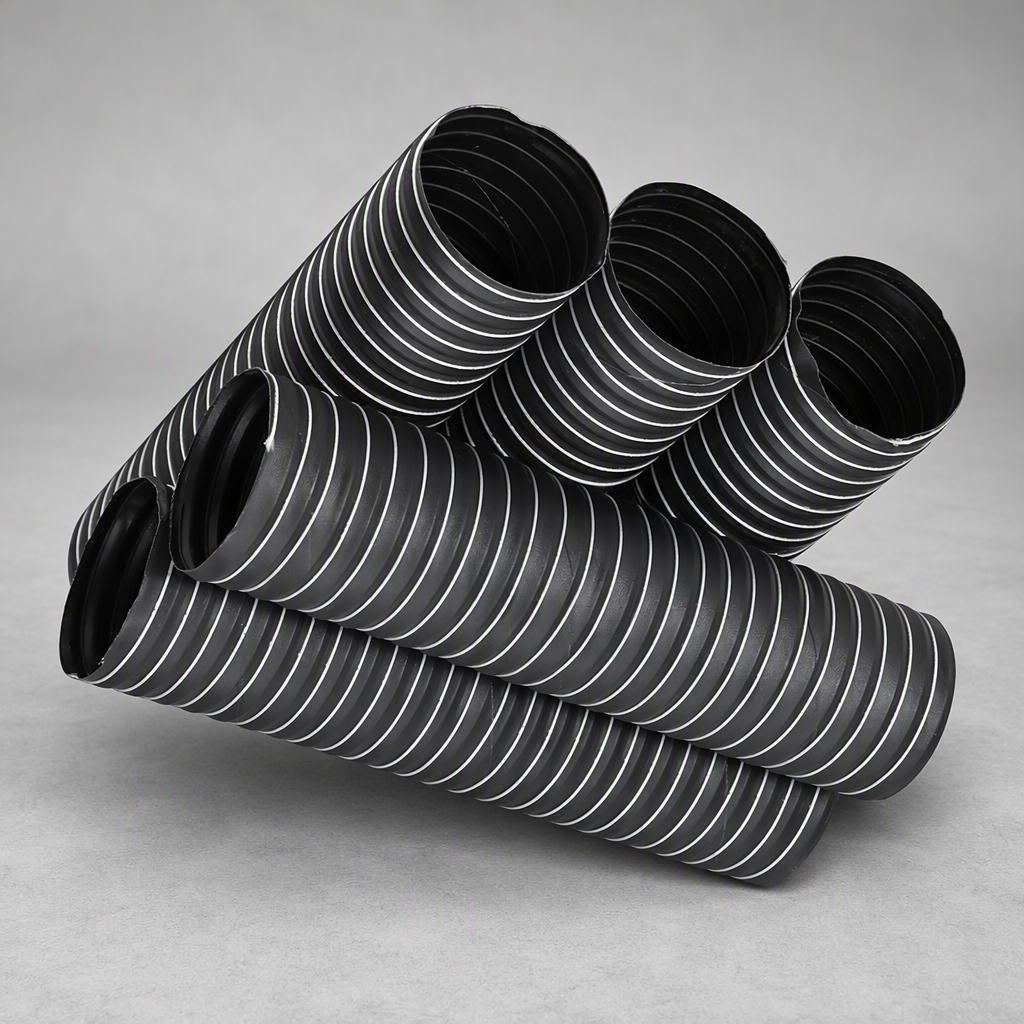

Customized Length Neoprene Hose

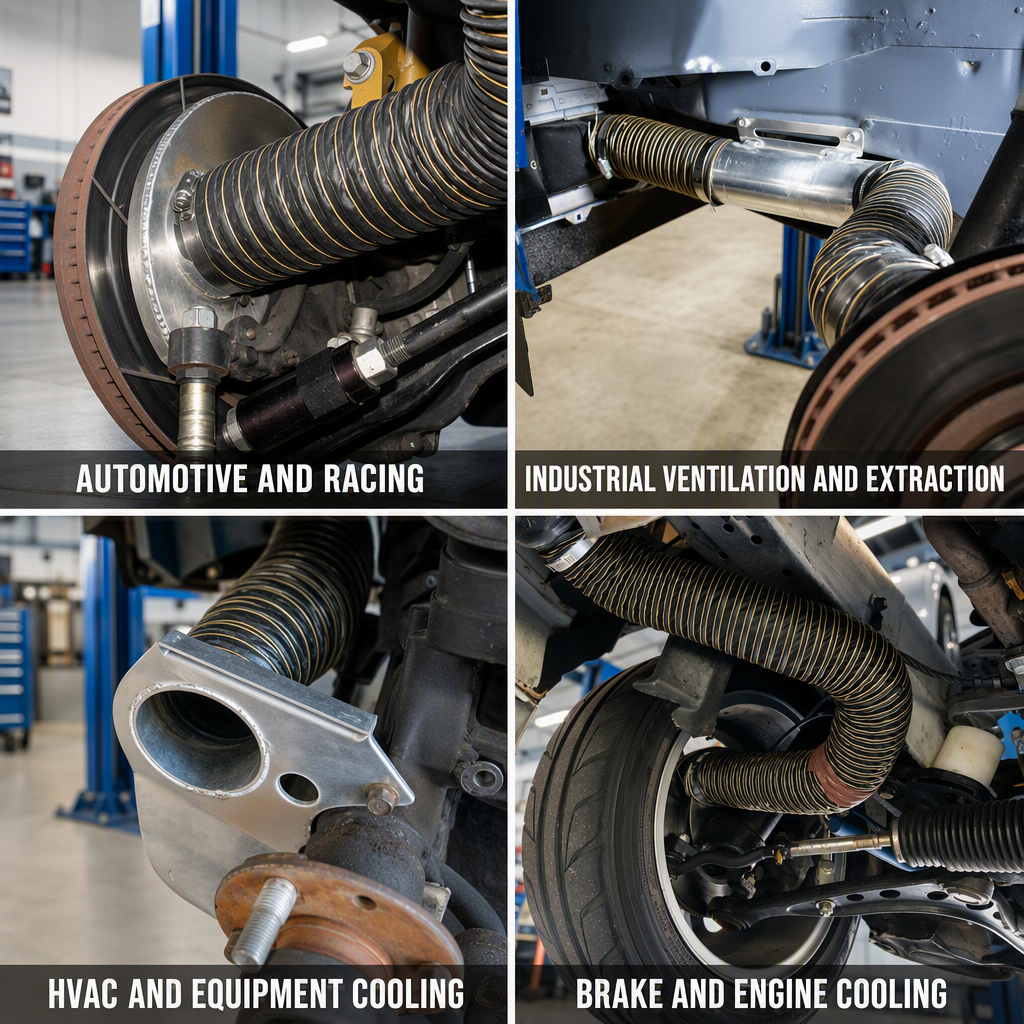

Applications
Application Scenarios
